EA-30B  incinerators with the burning rate 20-30 kgs per hour

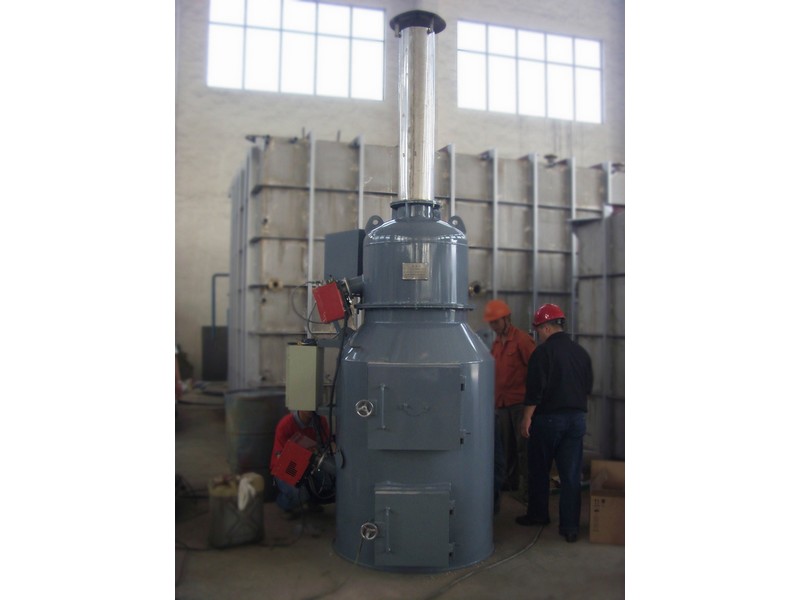

EA-30B Medical waste incinerator



Equipment Technical Specifications

Model

EA-30B

Burning Rate

20-30 kgs per hour

Voltage

220V

Fuel

Diesel oil

Burner

2pcs

Feed Mode

Manual

Fuel consumption (Oil)

5Kgs/Hour

External Dimensions

Φ115mm×242cm (main body)

Waste combustion chamber

680Liters

Chimney

6m

Gross Weight

2500kgs

Chamber Material

refractory material selection of high alumina wear-resistant acid materials casting

install space occupy

2500mm×2500mm

Operation Technical Specifications

Solid Chamber temperature

600-900

Gas Chamber temperature

800-1100

Chamber Anti-Rate

15000C

Residency time

2.0 Sec.

Burning efficiency

98%

Application place:

1.      Hospitals, laboratories, research institutions, quarantine and epidemic prevention

         mechanism, breeding slaughter, zoo, border customs,     terminal, tourist sites, Mint, confidential

         units;

2.      Expired drugs, confiscated goods, fake and shoddy goods handling collection.

3.      At the same time can handle small amounts of other liquid wastes such as waste oil, waste solvent

4.      Applied to other food, packaging, pharmaceutical, chemical, machinery industry and other waste

         treatment.

Features:


1.      processing waste a wide range, strong adaptability.

2.      According to the principle of three T design of incineration (temperature, time, vortex).

3.      furnace special supplemental oxygen process, oxygen supply uniform, burning speed, fuel saving.

4.      burner imported parts, low failure rate, maintenanc.

5.      Special gas swirl design, ensure the organic matter oxidation reaction time greater than 2 seconds

6.      Incineration temperature Max1150 , the removal rate of organic matter 99.9%

7.      Flue gas high temperature oxidation treatment for the two time, to do a thorough clean, smokeless, odorless,

8.    Furnace body of refractory material selection of high alumina wear-resistant acid materials casting, temperature  Max1790 .

9.    Thickening of refractory thermal insulation, can save fuel, temperature fluctuation is small, precise  temperature  control

10.   Simple operation, stable performance, no need for professional management.

11.   Reasonable design, compact structure, small occupied area, investment saving, low maintenance cost.

12.   Long service life, subjective life of 5-8 years, and within a year almost free of maintenance expenditure.
