FMD100 Medical Waste Shredder (Low Speed)

    Back to Medical waste shredder

FMD100   Slow speed Dual shaft Cross Crushing medical waste  shredder with UV and Ozone disinfection, 100kg-12

Functions:

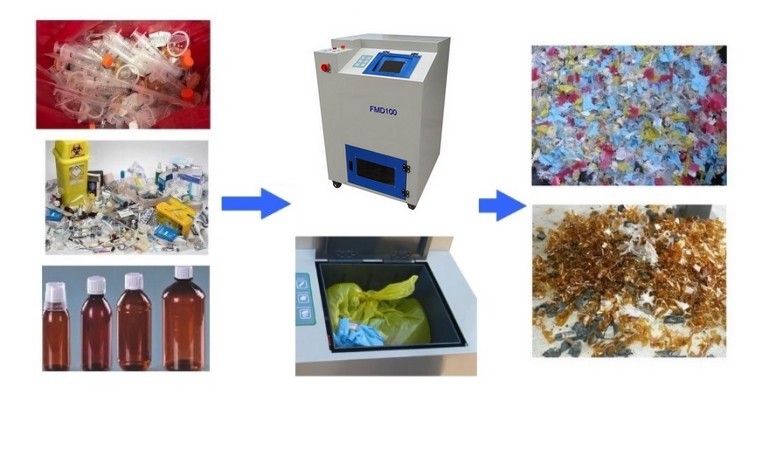

1. This machine is designed to destroy all kinds of used medical plastic disposal such as plastic utensils, syringes, test

    tubes,   ELISA plate, dish, dilution cup, straw, tip, urine cup, pill bottle and medical used needle, small glass bottles

    and so on. it is durable and safety and with good structure.

2. It can destroy the medical disposal plastic into small pieces, so that to avoid the reuse and the volume of transportation

    of waste by 85%.



Description:

Safety protection

Electric Leakage protection,

Over voltage and over current

protection;Interface safety voltage;

Emergency stop function;With

earthing conductor;

High torque,low speed technology

Efficiently process bulk fed,,though

to shred materials. Less downtime,

noise and dust emission than high

speed shredders.

Professional Cutter design

We will help to design the proper

number and the length of hooks for

cutters according to various kinds of materials so that to maximize through

put of the requirement shred size

With UV disinfection

With  the UV and Ozone

disinfection lamp and can

kill the virus where the UV

lamp light reach.



Automatic shaft Reverse function

When over feeding, Automatic shaft

Reverse function will protecting against

damage .

Super low noise

Its working noise is about 60-70dBa,

so it is more suitable for hospital use.


Parameter:

Destroying method

Electric Double shaft cutting

Product size

 860*860*1350mm

Crushing capacity

100 -120kg/hour

Power supply

 110V/220V-240V,50Hz, single phase power supply

Internal protection

overload protection , leakage protection



Thermal hypersensitivity protection,

Interface voltage

Safety low voltage on the operation panel.

Output power

 3000VA

Material of shell

Mild steel powder coated

Temperature

in operation:-5°C~+50°C  stored:-20°C~+55°C

Relative humidity

60%~80%

Waste collector

1pc of Waste collector

Number of knife

  18pcs of rotating blade,18pcs of fixed blade

Motor

Quiet and low speed motor.

Low noise

60 - 70 dB (A)

Rpm

30r/min

Operation Panel

“START”    “STOP”  “EMERGENCY STOP”   “POWER LIGHT”   “POWER SWITCH”. “DISINFECTION” for UV and Ozone disinfection. Automatic shaft reverse function when blade is stuck.
