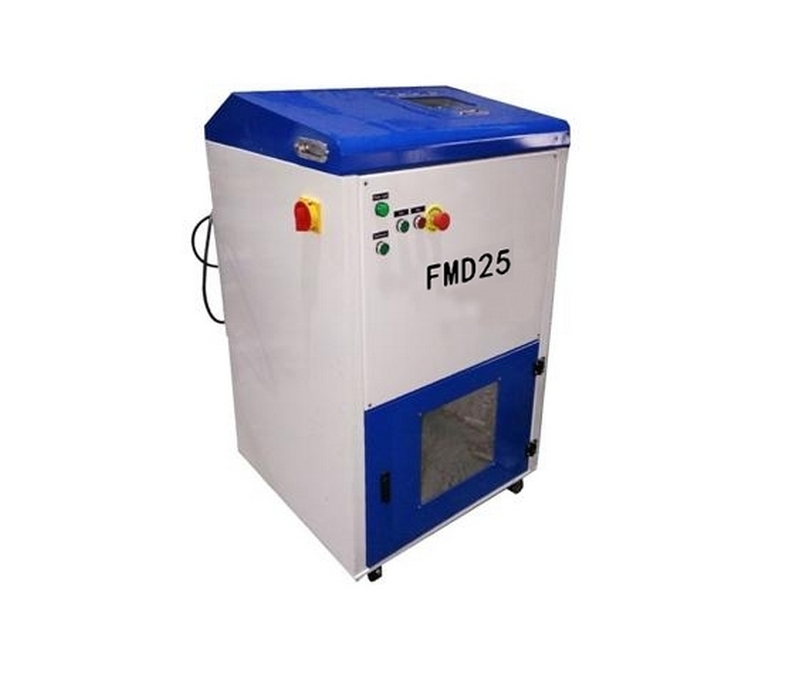

FMD25 Lab/Clinic medical waste shredder/pill bottle shredder

    Back to Medical waste shredder

FMD25  Slow speed Dual shaft Cross Crushing shredder  for lab or clinic use 25-30kg/hour,with UV disinfection

PILL BOTTLE SHREDDER/MEDICAL WASTE SHREDDER

PILL BOTTLE SHREDDER/MEDICAL WASTE SHREDDER
 Model:FMD25

Functions:

This machine is designed to destroy all kinds of used medical plastic disposal such as plastic utensils, syringes, test tubes, ELISA plate, dish, dilution cup,straw, tip, urine cup, pill bottle and medical used needle, small glass bottles and so on. it is durable and safety and with good structure. It can destroythe medical disposal plastic into small pieces, so that to avoid the reuse and the volume of transportation of waste by 85%.

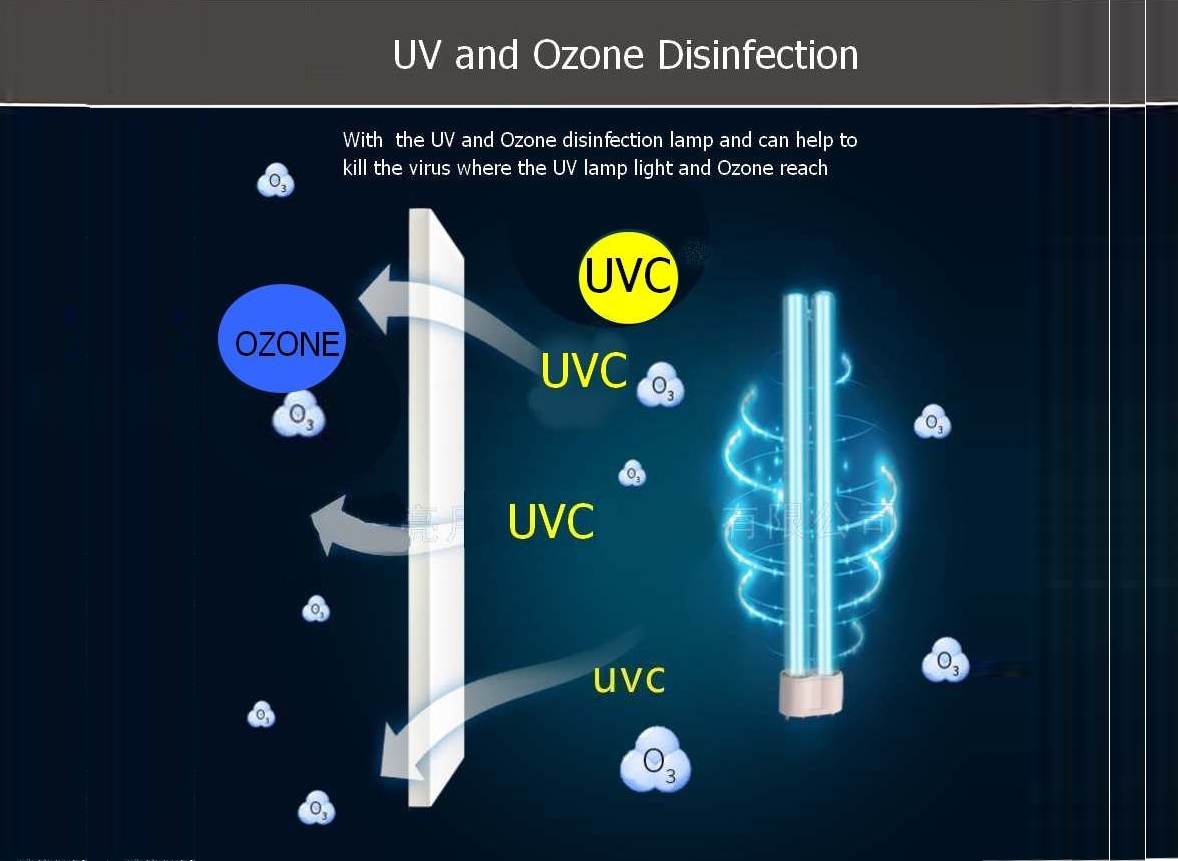

Double shaft shredding, UV and Ozone Disinfections

                 Double shaft shredding technology,

                 low noise and  High efficiency


It is  With  the UV and Ozone disinfection lamp and can

kill the viruswhere the UV lamp light and Ozone reach.







Features for FMD25

Safety protection

Electric Leakage protection,

Over voltage and over current protection;

Interface safety voltage;

Emergency stop function;

With earthing conductor;

Professional Cutter design

We will help to design the proper number

and the length of hooks for cutters according

to various kinds of materials so that to

maximize throughput of  the requirement

shred size


With UV disinfection

With  the UV and Ozone disinfection lamp

and can kill the virus where the UV lamp

light reach.

Automatic shaft Reverse function

When over feeding, Automatic shaft

Reverse function will protecting against damage .


High torque,low speed technology

Efficiently process bulk fed,,though

to shred materials. Less downtime, noise

and dust  emission than high Speed shredders.

Super low noise

Its working noise is about 60-70dBa,

so it is more suitable for hospital use



Parameter for FMD25

Destroying method

Electric Double shaft cutting

Product size

780*680*1280mm

Crushing capacity

25-30kg/hour

Power supply

 110V/220V-240V,50Hz, single phase power supply

Internal protection

overload protection , leakage protection



Thermal hypersensitivity protection,

Interface voltage

Safety low voltage on the operation panel.

Output power

1500VA

Material of shell

Mild steel powder coated

Temperature

in operation:-5°C~+50°C  stored:-20°C~+55°C

Relative humidity

60%~80%

Waste collector

1pc of Waste collector

Number of knife

10 pcs of rotating blade,10pcs of fixed blade

Motor

Quiet and low speed motor.

Low noise

60 - 70 dB (A)

Rpm

30r/min

Operation Panel

“START”    “STOP”  “EMERGENCY STOP”   “POWER LIGHT”   “POWER SWITCH”. “DISINFECTION” for UV and Ozone disinfection. Automatic shaft reverse function when blade is stuck.
