FMD-B100 Glass waste shredder/ampoule bottle shredder

    Back to Medical waste shredder

we can supply the  Glass waste shredder/ampoule bottle shredder .

Slow speed glass bottle shredder

Glass waste shredder/ampoule bottle shredder

Model:  FMD-B100

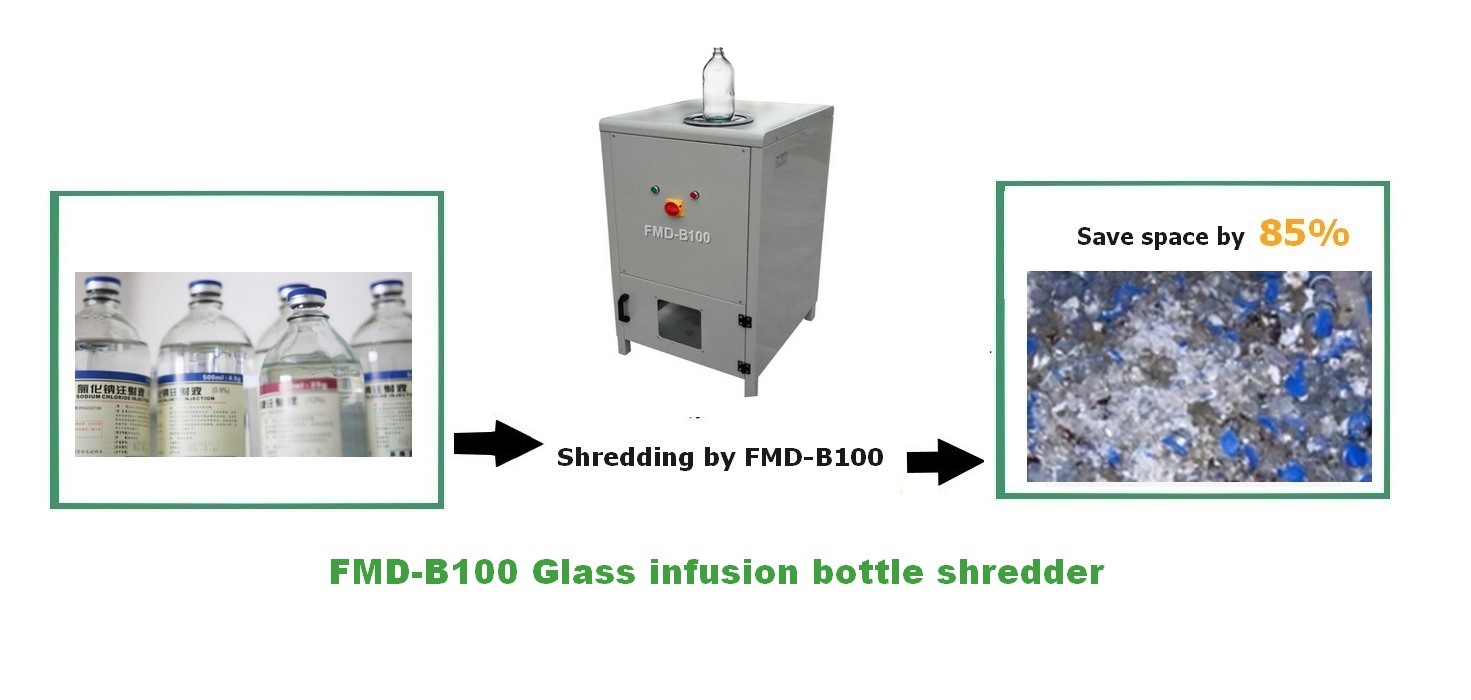

This machine have special shredding system for the glass bottle , it is durable and safety and with good structure.

 It can destroy the medical disposal glass bottle into small pieces, so that to avoid the reuse and reduce the volume

 of transportation of waste by 85%.


Product usage

Hospital, clinic, laboratory and so on.

Main Feature:

1. Waste Collection

With plastic container of waste collection, all waste will fall into the plastic container .

2. Material

The body is made of mild steel powder coated , anti-rust, and the waste collection container is made of plastic and the blade is made of SKD11

3.Good structure

With good appearance as well as good function the height of the waste inlet is suitable for putting in the waste, and the operation panel is convenient for operation, with glass waste shredding function.

4 .Easy to operate

With operation panel and the operator can operate it with just minutes training.

 5. Safety protection:

Electric Leakage protection,

Over voltage and over current protection;

Interface safety voltage;

Emergency stop function;

Mild steel body and resistance to breakdown;

With earthing conductor;

Automatic Reverse step function when shredder becomes stuck

 6 .More safety

We use low speed motor and no risk of the waste fly out of the shredding chamber,

Parameter

Destroying method

Double shaft cutting

Product size

600*600*1200mm

Crushing capacity

200-500kg glass bottle per hour

Power supply

220V,50Hz, single phase power supply

Internal protection

overload protection , leakage protection



Thermal hypersensitivity protection,

Interface voltage

Safety low voltage on the operation panel.

Output power

1500VA

Temperature

in operation:-5°C~+50°C  stored:-20°C~+55°C

Relative humidity

60%~80%

Waste collector

1pc of Waste collector

Number of knife

10pcs

Motor

Quiet and low speed motor.

Low noise

60 - 70 dB (A)

Rpm

35

Destroying material

Vial bottles and so on

Weight

150kg
