FMD50S Medical Waste Shredder

    Back to Medical waste shredder

FMD50S Slow speed Dual shaft Cross Crushingshredder  for lab or clinic use 50-80kg/hour

FMD50S MEDICAL WASTE SHREDDER

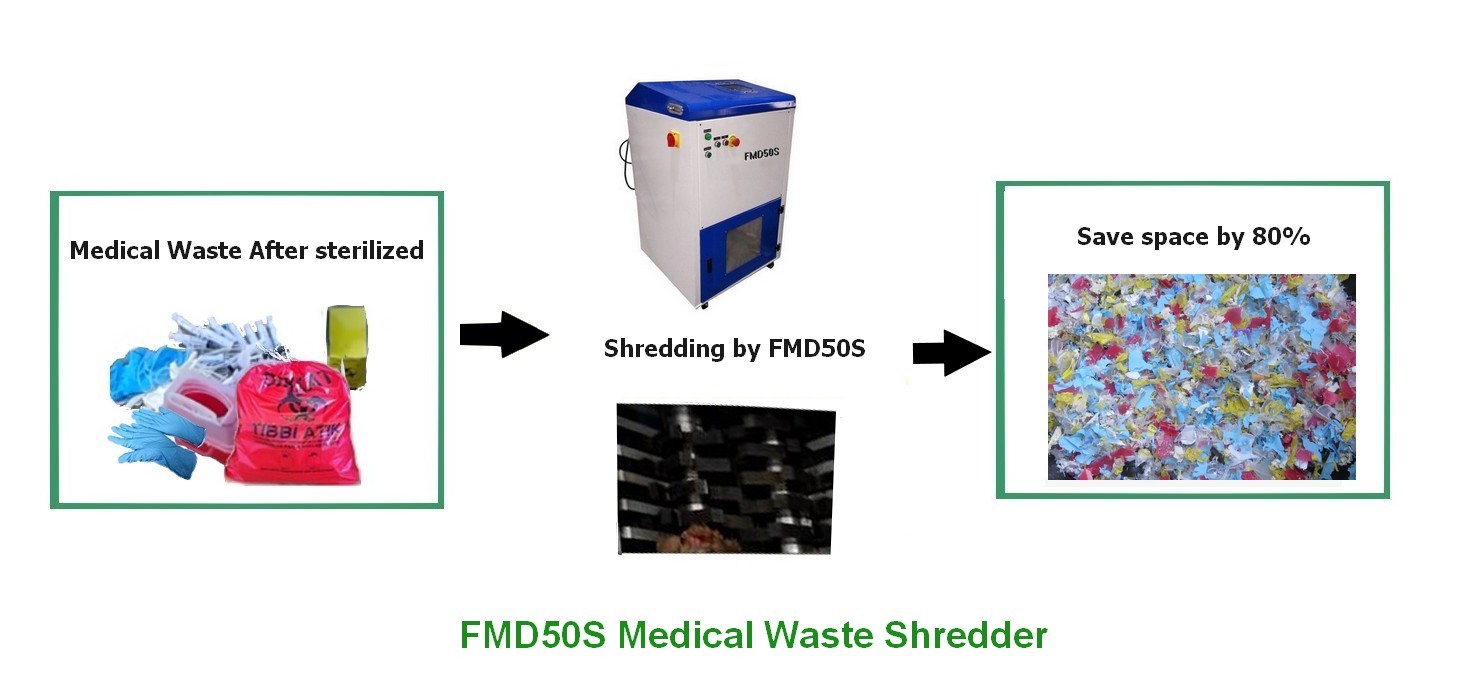

FMD50S dual shaft shredder can be used for shredding various kinds  of medical waste so that to reduce  the volume by 85%.


Material include:

This machine is designed to destroy all kinds of used medical plastic disposal such as plastic utensils, syringes, test tubes,

ELISA plate, dish, dilution cup, straw, tip, urine cup, pill bottle and medical used needle, small glass bottles and so on. it is

durable and safety and with good structure. It can destroy the medical disposal plastic into small pieces, so that to avoid

the reuse and the volume of transportation of waste by 85%.





Parameter for FMD50S

Destroying method

Electric Double shaft cutting

Product size

980*780*1280mm

Crushing capacity

50-80kg/hour

Power supply

380V,50HZ, 3 phase power supply

Internal protection

overload protection , leakage protection



Thermal hypersensitivity protection,

Interface voltage

Safety low voltage on the operation panel.

Output power

2200VA

Material of shell

Mild steel powder coated

Temperature

in operation:-5°C~+50°C  stored:-20°C~+55°C

Relative humidity

60%~80%

Waste collector

1pc of Waste collector

Number of knife

14 pcs of rotating blade,14pcs of fixed blade

Motor

Quiet and low speed motor.

Low noise

60 - 70 dB (A)

Rpm

30r/min

Operation Panel

“START”    “STOP”  “EMERGENCY STOP”   “POWER LIGHT”   “POWER SWITCH”. “DISINFECTION” for UV and Ozone disinfection. Automatic shaft reverse function when blade is stuck.


Features and options:

Safety protection


Electric Leakage protection,

Over voltage and over current

protection;

Interface safety voltage;

Emergency stop function;

With earthing conductor;

High torque,low speed technology


Efficiently process bulk fed,,though to shred

materials. Less downtime, noise and dust

emission than high speed shredders.

Professional Cutter design


We will help to design the

proper number and the length

of hooks for cutters according

 to various kinds of materials so

that to maximize throughput of

the requirement shred size


With UV disinfection

With  the UV and Ozone disinfection

lamp and can kill the virus where the

UV lamp light reach.




Automatic shaft Reverse function


When over feeding, Automatic shaft Reverse

function will protecting against damage .


Super low noise


Its working noise is about

60-70dBa,so it is more suitable for

 hospital use.
